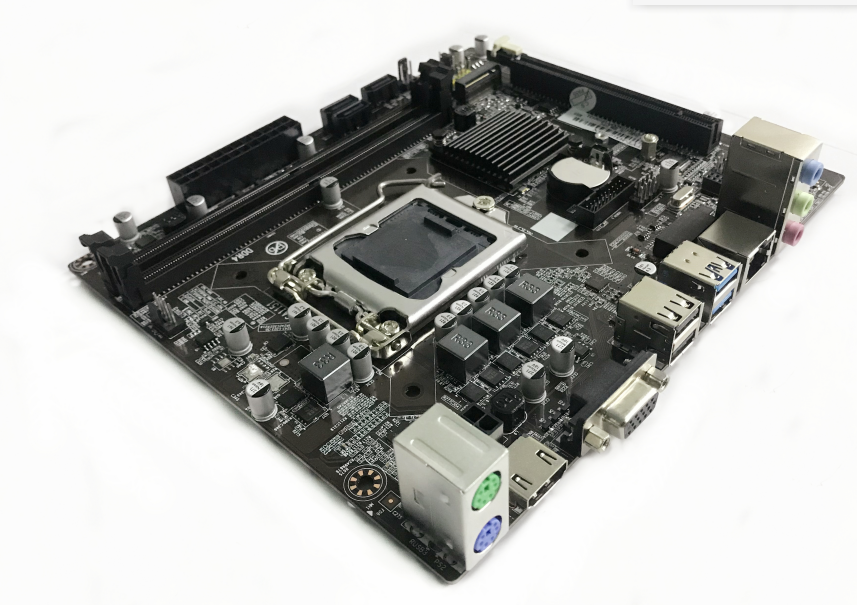

TYT H310C MOTHERBOARD
Processor Support: Inte® Socket 1151 for 8th/9th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Inte® 14 nm CPU, Supports Inte® Turbo Boost Technology 2.0. Chipset: Inte® H310 Chipset. Memory Support: 2 * DDR4 2133/2400MHz DIMM. LAN: Supports Realtek®8105E 100 Mbps. Audio: Realtek®662 6-channel audio. SATA: 3* SATA 3.0 port(s). Back panel: 1 * VGA port,1 * HDM1 port, 2* USB 3.0 Ports, 2* USB 2.0 Ports, 1 * LAN jack, 3 * flexible audio jacks. On-Board Pinheaders / Connectors: 1 * USB 3.0 pinheader, 1 * USB 2.0 pinheader, 1 *F_Audio pinheader, 1 * F_Panel pinheader, 1 *, DEBUG pinheader. Slots: 1*PCI Express x16 3.0 slot 1* M.2 Port. Form Factor: Micro-ATX (19.4cm X 16.8 cm).
